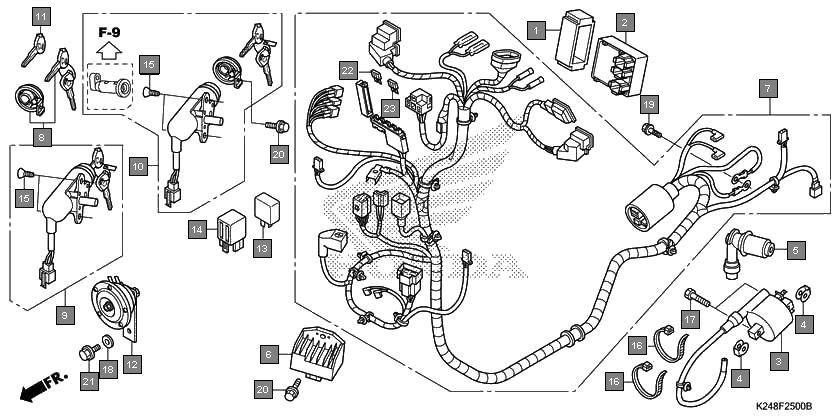

Scooters Activa125 SCV125G Frame Wire harness
Ref.No. Part No. Description Oty
1 30401KVE901 CUSHION, C.D.I. UNIT(DENSO) 1
2 30410K24921 SPARK UNIT COMP. 1
3 30500KWPD01 COIL ASSY., IGNITION(WINGS) 1
4 30520GFM900 SPACER, IGNITION COIL 2
5 30700K24921 CAP ASSY., NOISE SUPPRESSOR 1
6 31600KWPE02 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
7 32100K24930 HARNESS, WIRE 1
8 32100K24920 HARNESS, WIRE 1
9 35011KWP910 SHUTTER SET, KEY(JAY USHIN)(KEY NO. PXXX/QXXX) 1
10 35012KWPD00 SWITCH ASSY. SET, COMBINATION& LOCK(JAY USHIN) 1
11 35014KWPD00 KEY & SCREW SET(JAY USHIN) 1
12 35121KWP910 KEY, BLANK(91KEYTOP2REPORDER) 1
13 38110K24901 HORN COMP. 1
14 38301K14962 RELAY COMP., WINKER (STAR ENGINEERS) 1
15 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
16 90164KEE630 SCREW, FLAT, 6X12 2
17 90657KRP901 CABLE, TIE(LONG) 2
18 92101060204J BOLT, HEX., 6X20 2
19 9410308800 WASHER, PLAIN, 8MM 1
20 957010601208 BOLT, FLANGE, 6X12 1
21 957010601600 BOLT, FLANGE, 6X16 2
22 957010801200 BOLT, FLANGE, 8X12 1
23 9820031000 FUSE, BLADE(10A) 2
24 9820031500 FUSE, BLADE(15A) 2
25 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
