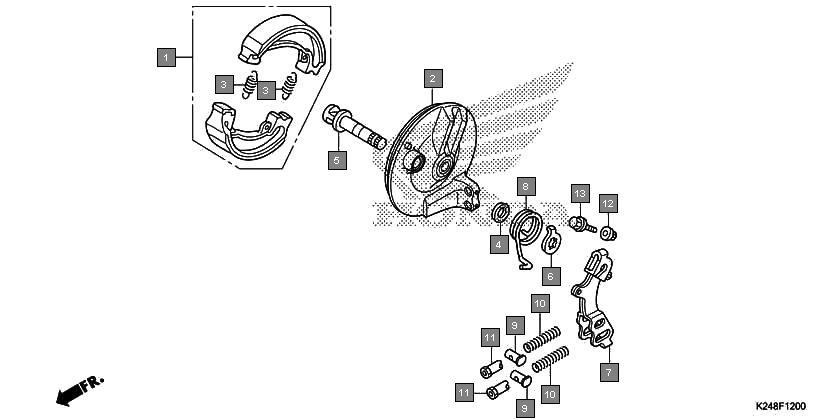

Scooters Activa125 SCV125G Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KWP900 SHOE SET, BRAKE(JB) 1
2 06430KWPD00 SHOE SET, BRAKE(ASK) 1
3 45100K24900 PANEL COMP., FR. BRAKE 1
4 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
5 45134250000 DUST SEAL, BRAKE CAM 1
6 45141KWPD00 CAM, FR. BRAKE (RR.) 1
7 45145096650 INDICATOR, FR. BRAKE 1
8 45410KVT940 ARM, FR. BRAKE 1
9 45435KPL900 SPRING, BRAKE ARM RETURN 1
10 45453KWP911 JOINT, BRAKE ARM 2
11 45456KWP910 SPRING, BRAKE CABLE END 2
12 45459KWP911 NUT, BRAKE ADJUSTING 2
13 9405006000 NUT, FLANGE, 6MM 1
14 957010603200 BOLT, FLANGE, 6X32 1
