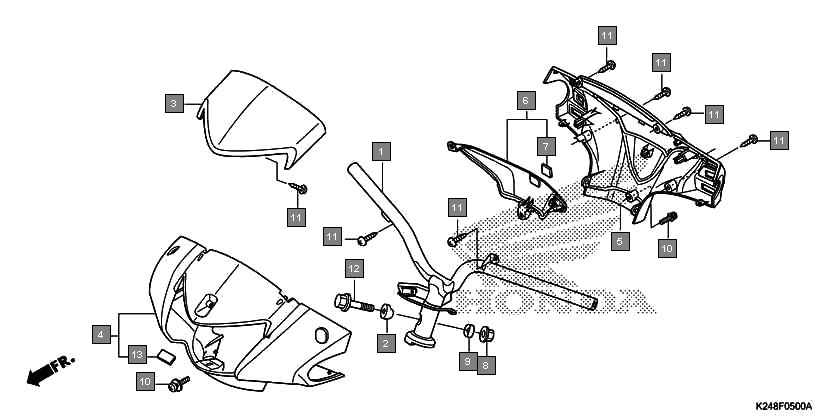

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 53100K24910 | HANDLE COMP., STEERING | 1 |
2 | 53100K24900 | HANDLE COMP., STEERING | 1 |
3 | 53124KWP900 | COLLAR, HANDLE SETTING | 1 |
4 | 53204K24900ZA | VISOR, METER *NH1* BLACK | 1 |
5 | 53250K24920ZA | COVER COMP., HANDLE FR *R329M* REBEL RED METALLIC | 1 |
6 | 53250K24920ZB | COVER COMP., HANDLE FR *PB375M* MIDNIGHT BLUE METALLIC | 1 |
7 | 53250K24920ZC | COVER COMP., HANDLE FR *NH1* BLACK | 1 |
8 | 53250K24920ZD | COVER COMP., HANDLE FR *NHB63P* PEARL AMAZING WHITE | 1 |
9 | 53206K24900ZA | COVER, RR. HANDLE *NH1* BLACK | 1 |
10 | 53208K24900ZA | COVER COMP., METER GARNISH *NH35M* CLOUD SILVER METALLIC | 1 |
11 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
12 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 1 |
13 | 90502KWP900 | COLLAR B, HANDLE SETTING | 1 |
14 | 938910501607 | SCREW-WASHER, 5X16 | 2 |
15 | 9390334480 | SCREW, TAPPING, 4X16 | 7 |
16 | 958011005508 | BOLT, FLANGE, 10X55 | 1 |
17 | 53202K24920 | CUSHION, FR. HANDLE | 1 |
