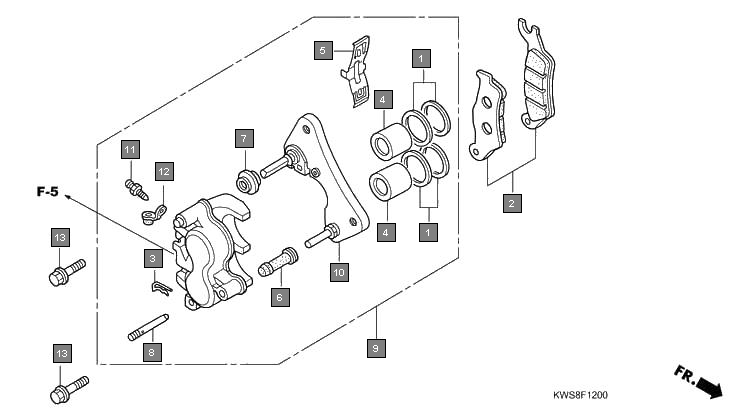

Motorcycles CB Twister CBF110MA Frame Front brake caliper
Ref.No. Part No. Description Oty
1 06451KCC841 SEAL SET, PISTON 2
2 06455KCC842 PAD SET, FR. 1
3 43216MAK003 CLIP, HANGER PIN 1
4 45107KCC841 PISTON(26) 2
5 45108KCC841 SPRING, PAD 1
6 45132KCC841 BOOT, PIN BUSH 1
7 45133KCC841 BOOT, B 1
8 45220KCC841 PIN COMP., HANGER 1
9 45250KCC841 CALIPER SUB ASSY., R. FR. 1
10 45290KCC841 BRACKET SUB ASSY., FR. CALIPER 1
11 45352KCC841 SCREW, BLEEDER 1
12 45353KCC841 CAP, BLEEDER 1
13 90155KSP900 BOLT, FLANGE, 8X25 2
