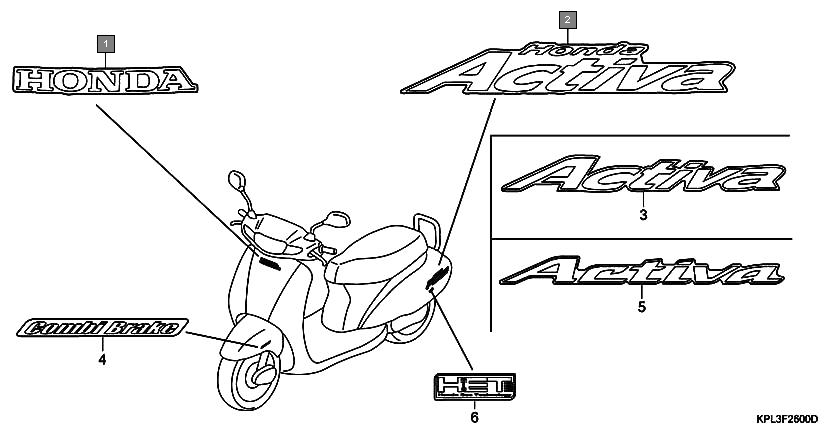

Scooters Activa SCV1109 Frame Mark
Ref.No. Part No. Description Oty
1 87101KWP900ZA MARK, FR. CENTER COVER *TYPE1* 1
2 87101KWP900ZB MARK, FR. CENTER COVER *TYPE2* 1
3 87101KWP900ZC MARK, FR. CENTER COVER *TYPE3* 1
4 87102KWP900ZA MARK, BODY COVER *TYPE1* 2
5 87102KWP900ZB MARK, BODY COVER *TYPE2* 2
6 87102KWP900ZC MARK, BODY COVER *TYPE3* 2
7 61106KWP910ZA MARK(COMBI BRAKE)*TYPE1* Black + Red 1
8 61106KWP910ZB MARK(COMBI BRAKE)*TYPE2* 1
9 61106KWP910ZC MARK(COMBI BRAKE)*TYPE3* 1
