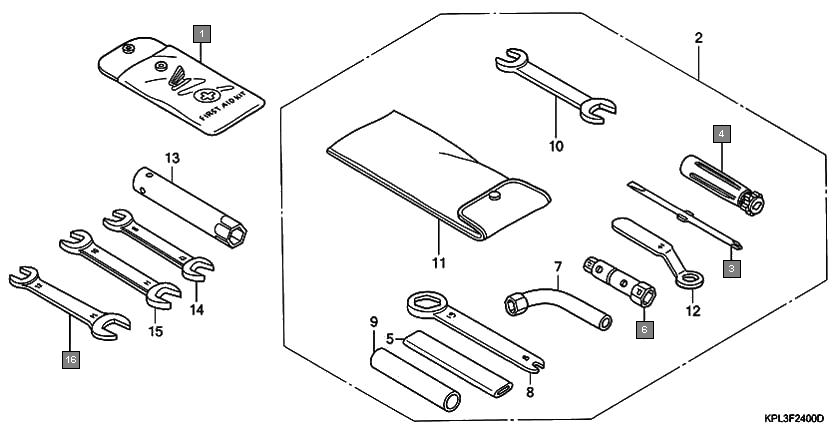

Scooters Activa SCV1109 Frame Tool
Ref.No. Part No. Description Oty
1 84510KWP900 AID KIT, FIRST 1
2 89102KPL900 DRIVER, SCREW(NO.2 +/-) 1
3 89103KPL900 GRIP 1
4 89216KTP900 WRENCH, PLUG(16) 1
5 9900801600 BAG, TOOL, 160MM 1
6 89215KWP900 WRENCH, BOX(12MM) 1
7 9900108120 SPANNER, 8X12 1
8 9900110140 SPANNER, 10X14 1
9 89214KPL900 WRENCH, EYE, 14MM 1
