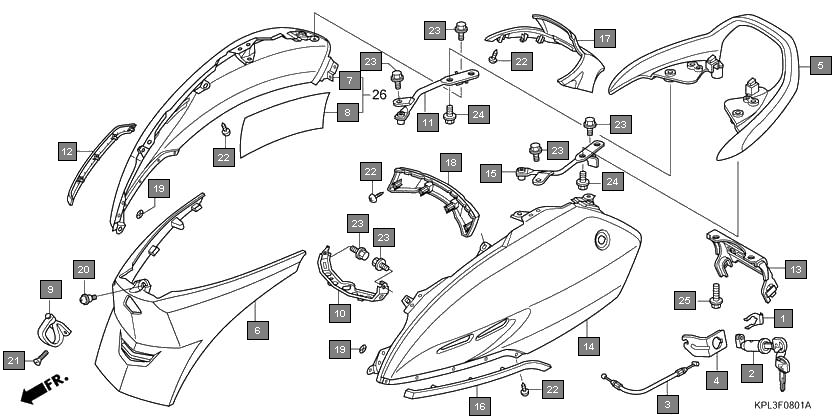

Scooters Activa SCV1109 Frame Body cover(scv1109,b,d,e)
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KWP901 KEY, SEAT LOCK(JAY USHIN) 1
3 77240KWP900 CABLE, SEAT LOCK 1
4 77241KWP901 STAY, SEAT LOCK 1
5 77241KWP900 STAY, SEAT LOCK 1
6 77300KWP900ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
7 80151KWP900ZA COVER, CENTER *NH1* BLACK 1
8 83500KWPP00ZZ COVER COMP., R. BODY 1
9 83507KPL900 INSULATOR, R. BODY COVER 1
10 83508KPL900 HOOK, LUGGAGE 1
11 83510KWPP00ZZ STAY, FR. BODY COVER 1
12 83511KWPP00ZZ PIPE, R. RR. GRIP SUPPORT 1
13 83520KWP900 MOUL, R. BODY COVER 1
14 83560KWP900 HINGE, BODY COVER 1
15 83600KWPP00ZZ COVER COMP., L. BODY 1
16 83611KWPP00ZZ PIPE, L. RR. GRIP SUPPORT 1
17 83620KWP900 MOUL, L. BODY COVER 1
18 83750KWP900ZA COVER, RR. CENTER *NHA04M* GENY GRAY METALLIC 1
19 83751KWP900ZA COVER, RR. CENTER LOWER *NHA04M* GENY GRAY METALLIC 1
20 83751KWP900ZB COVER, RR. CENTER LOWER *NHA66P* PEARL SUNBEAM WHITE 1
21 83751KWP900ZC COVER, RR. CENTER LOWER *NH1* BLACK 1
22 83751KWP900ZF COVER, RR. CENTER LOWER *R264C* CANDY LUCID RED 1
23 83751KWP900ZE COVER, RR. CENTER LOWER *RP175M* WILD PURPLE METALLIC 1
24 83751KWP900ZD COVER, RR. CENTER LOWER *NH411M* FORCE SILVER METALLIC 1
25 90302KPL660 NUT, PUSH, 3MM 10
26 91509GE2760 SCREW, PAN, 5X11.5 1
27 93600050120G SCREW, FLAT, 5X12 2
28 9390334380 SCREW, TAPPING, 4X12 14
29 9390334320 SCREW, TAPPING, 4X12 14
30 957010601208 BOLT, FLANGE, 6X12 6
31 957010801208 BOLT, FLANGE, 8X12 4
32 957011002008 BOLT, FLANGE, 10X20 2
33 83750KWP900ZB COVER, RR. CENTER *NHA66P*PEARL SUNBEAM WHITE 1
34 83750KWP900ZC COVER, RR. CENTER *NH1* BLACK 1
35 83750KWP900ZF COVER, RR. CENTER *R264C* CANDY LUCID RED 1
36 83750KWP900ZE COVER, RR. CENTER *RP175M* WILD PURPLE METALLIC 1
37 83750KWP900ZD COVER, RR. CENTER *NH411M* FORCE SILVER METALLIC 1
