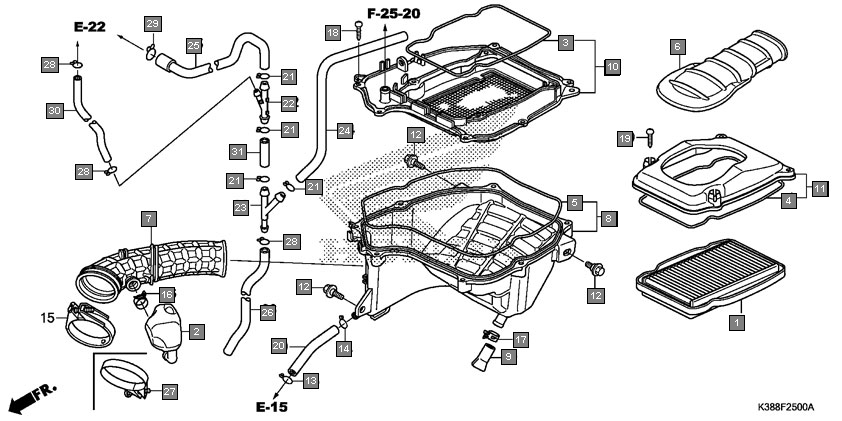

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17211K38900 | ELEMENT COMP., AIR CLEANER | 1 |
2 | 17213K38900 | RESONATOR | 1 |
3 | 17214K38900 | SEAL, AIR CLEANER | 1 |
4 | 17215KSP900 | SEAL A, AIR CLEANER | 1 |
5 | 17219K38900 | DUCT, AIR CLEANER | 1 |
6 | 17222K38900 | TUBE, AIR CLEANER CONNECTING | 1 |
7 | 17225K38900 | CASE SUB ASSY., AIR CLEANER | 1 |
8 | 17227KTE910 | TUBE, VINYL, 11X15X40 | 1 |
9 | 17235K38900 | HOLDER SUB ASSY., AIR CLEANER | 1 |
10 | 17245K38900 | COVER SUB ASSY., AIR CLEANER | 1 |
11 | 17245K38901 | COVER SUB ASSY., AIR CLEANER | 1 |
12 | 90111162000 | BOLT, FLANGE, 6MM | 3 |
13 | 90651KM9000 | CLIP, TUBE(B14) | 1 |
14 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
15 | 90652K38900 | BAND, AIR CLEANER CONNECTING TUBE(54MM) | 1 |
16 | 90678K38900 | CLIP, RESONATOR | 1 |
17 | 91406KFN850 | CLAMP, TUBE(D14.5) | 1 |
18 | 9390325480 | SCREW, TAPPING, 5X20 | 7 |
19 | 9390325580 | SCREW, TAPPING, 5X25 | 4 |
20 | 950058010520 | TUBE, 8X105 | 1 |
