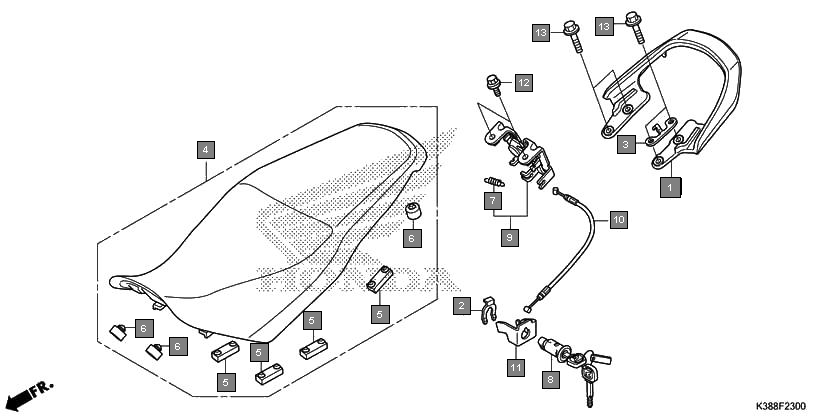

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50400K38900ZA | GRIP, RR. *NHB60M* MAT SELENE SILVER METALLIC | 1 |
2 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
3 | 77106K21900 | STAY, HELMET HOLDER | 1 |
4 | 77200K38901 | SEAT COMP., DOUBLE | 1 |
5 | 77205286000 | RUBBER B, SEAT SETTING | 6 |
6 | 77206KTE910 | RUBBER, SEAT SETTING | 4 |
7 | 77234GN2000 | SPRING, SEAT LOCK | 1 |
8 | 77239KYJT01 | KEY, SEAT LOCK | 1 |
9 | 77250K38900 | LOCK COMP., SEAT | 1 |
10 | 77260K38900 | CABLE, SEAT LOCK | 1 |
11 | 77582KPPT00 | STAY, SEAT LOCK CABLE | 1 |
12 | 960010601200 | BOLT, FLANGE, 6X12 | 2 |
13 | 957010802500 | BOLT, FLANGE, 8X25 | 4 |
14 | 957020802500 | BOLT, FLANGE, 8X25 | 4 |
