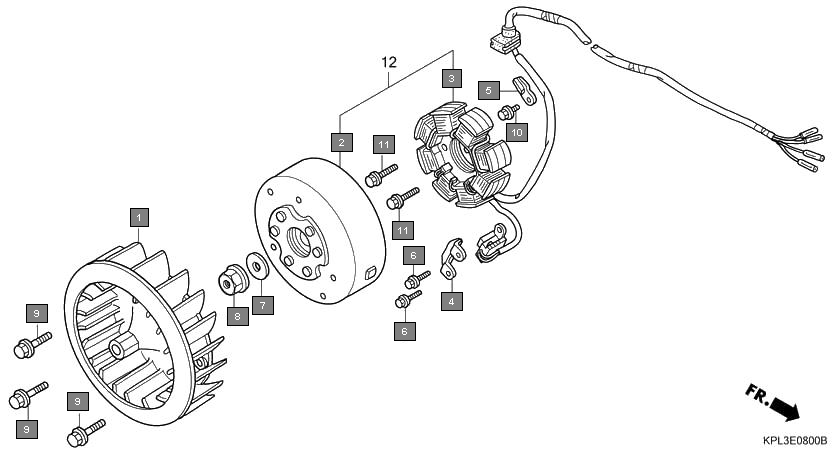

Scooters Activa SCV1109 Engine Generator(denso)
Ref.No. Part No. Description Oty
1 19510KWP900 FAN COMP., COOLING 1
2 31110KWP901 FLYWHEEL COMP. 1
3 31120KWP901 STATOR COMP. 1
4 32907KPL900 CLIP, GENERATOR CORD 1
5 32976107010 CLAMPER, WIRE HARNESS 1
6 90083KSP910 BOLT, KNOCK, 5MM 2
7 90410GCC000 WASHER, 10MM 1
8 9405010000 NUT, FLANGE, 10MM 1
9 957010601600 BOLT, FLANGE, 6X16 3
10 957020601600 BOLT, FLANGE, 6X16 3
11 960010601600 BOLT, FLANGE, 6X16 1
12 960010602200 BOLT, FLANGE, 6X22 2
