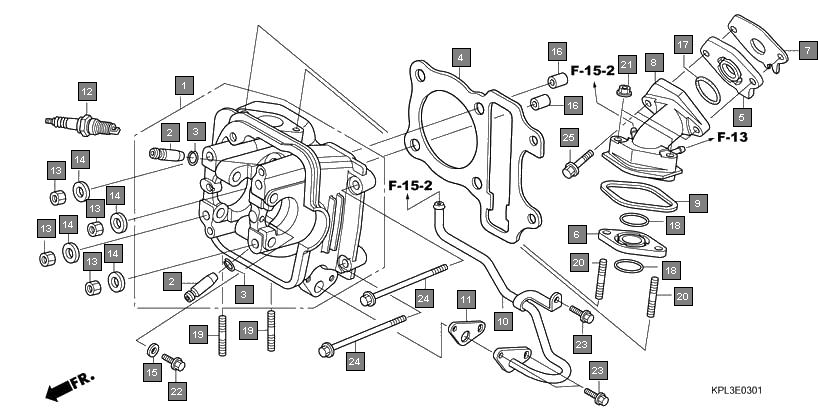

Scooters Activa SCV1109 Engine Cylinder head(scv1109,b,d,e)
Ref.No. Part No. Description Oty
1 90201GCC000 NUT, HEX., 7MM 4
2 90401GCC000 WASHER, 7.2X16X2.5 4
3 90402KWP900 WASHER, 6MM 1
4 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
5 91304KWP900 O-RING, 25X2.4 1
6 91308GFM900 O-RING, 25.5X1.9 2
7 92900060160B BOLT, STUD, 6X16 2
8 92900060350B BOLT, STUD, 6X35 2
9 9405006000 NUT, FLANGE, 6MM 2
10 957010601400 BOLT, FLANGE, 6X14 1
11 957020601400 BOLT, FLANGE, 6X14 1
12 957010601800 BOLT, FLANGE, 6X18 3
13 957020601800 BOLT, FLANGE, 6X18 3
14 957010610000 BOLT, FLANGE, 6X100 2
15 957020610000 BOLT, FLANGE, 6X100 2
16 960010602800 BOLT, FLANGE, 6X28 2
17 12200KWP900 HEAD COMP., CYLINDER 1
18 12204KWPP00 GUIDE, VALVE(O.S.) 2
19 12206KPL900 CLIP, VALVE GUIDE 2
20 12251KPL840 GASKET, CYLINDER HEAD 1
21 12251KWP901 GASKET, CYLINDER HEAD(BANCO) 1
22 16211KWP900 INSULATOR A, CARBURETOR 1
23 16212KWP900 INSULATOR B, CARBURETOR 1
24 16229KRP600 GASKET A, CARBURETOR INSULATOR 1
25 17110KWP900 PIPE COMP., IN. 1
26 17113KWP900 RUBBER, IN. PIPE SEAL 1
27 18640KWP900 PIPE COMP., AIR FEED 1
28 18645KVY900 GASKET, AIR FEED PIPE 1
29 31917KPH901 PLUG, SPARK(CPR7EA-9)(NGK) 1
