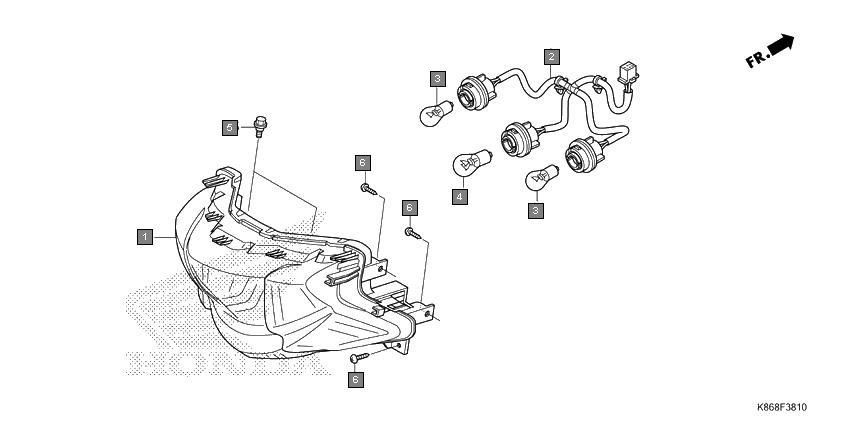

Scooters Grazia SCV125SK Frame Rear combination light
Ref.No. Part No. Description Oty
1 33710K86D01 LIGHT UNIT, RR. COMBINATION 1
2 33715K86D01 SOCKET COMP. 1
3 34904KRY971 BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) 2
4 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
5 90111KWP900 BOLT, INNER COVER 2
6 9390335320 SCREW, TAPPING, 5X16 6
