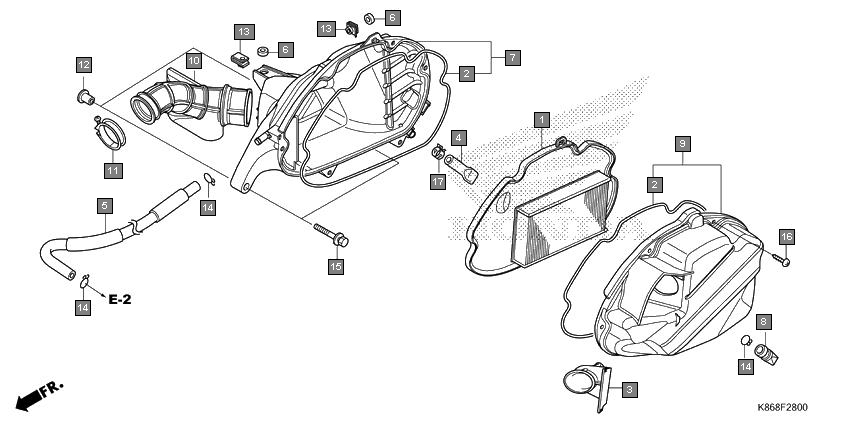

Scooters Grazia SCV125SK Frame Air cleaner
Ref.No. Part No. Description Oty
1 17210K24901 ELEMENT COMP., AIR CLEANER 1
2 17213K24900 SEAL, AIR CLEANER 2
3 17215K86D00 DUCT, AIR CLEANER 1
4 17216KTP900 TUBE, DRAIN 1
5 17218K24900 TUBE, BREATHER 1
6 17223KVX600 COLLAR, AIR CLEANER 2
7 17225K86D00 CASE SUB ASSY., AIR CLEANER 1
8 17234KCW871 TUBE, AIR CLEANER DRAIN 1
9 17245K86D00 COVER SUB ASSY., AIR CLEANER 1
10 17253K86D00 TUBE, AIR CLEANER CONNECTING 1
11 17254KWPD00 BAND, AIR CLEANER CONNECTINGTUBE(40) 1
12 50731KV3770 COLLAR, PILLION STEP SETTING 2
13 90311MT3000 NUT, CLIP, 6MM 2
14 90653KWPF00 CLIP, TUBE(B12.5) 3
15 934040604007 BOLT-WASHER, 6X40 2
16 9390325480 SCREW, TAPPING, 5X20 6
17 950024120008 CLAMP, TUBE(D12) 1
