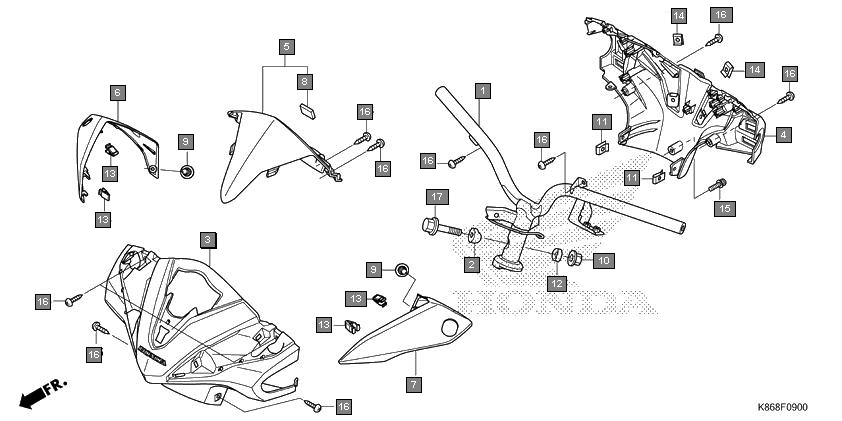

Scooters Grazia SCV125SK Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100K86D00 HANDLE COMP., STEERING 1
2 53100K86D10 HANDLE COMP., STEERING 1
3 53124KWP900 COLLAR, HANDLE SETTING 1
4 53150K86D00ZB COVER SET, FR. HANDLE(WL) *TYPE1* 1
5 53150K86D10ZA COVER SET, FR. HANDLE(WL) *TYPE1* 1
6 53206K86D00ZA COVER, RR. HANDLE *NH1* BLACK 1
7 53208K86D00ZA COVER COMP., METER GARNISH FORCE SILVER METALLIC *NH411M* 1
8 53208K86D00ZH COVER COMP., METER GARNISH *NHA84P* PEARL NIGHTSTAR BLACK 1
9 53208K86D00ZG COVER COMP., METER GARNISH *NHA95M* SWORD SILVER METALLIC 1
10 53211K86D00ZF COVER, R. HANDLE TOP MAT MARVEL BLUE METALLIC *B227M* 1
11 53211K86D00ZD COVER, R. HANDLE TOP PEARL AMAZING WHITE *NHB63P* 1
12 53211K86D00ZH COVER, R. HANDLE TOP *PB123PA* PEARL SIREN BLUE-A 1
13 53211K86D00ZA COVER, R. HANDLE TOP NEO ORANGE METALLIC *YR302M* 1
14 53211K86D00ZC COVER, R. HANDLE TOP MAT AXIS GRAY METALLIC*NH303M* 1
15 53211K86D00ZE COVER, R. HANDLE TOP PEARL NIGHTSTAR BLACK *NHA84P* 1
16 53211K86D00ZG COVER, R. HANDLE TOP PEARL SPARTAN RED *R382P* 1
17 53212K86D00ZA COVER, L. HANDLE TOP NEO ORANGE METALLIC *YR302M* 1
18 53212K86D00ZC COVER, L. HANDLE TOP *NH303M* MAT AXIS GRAY METALLIC 1
19 53212K86D00ZG COVER, L. HANDLE TOP *R382P* PEARL SPARTAN RED 1
20 53212K86D00ZF COVER, L. HANDLE TOP *B227M* MAT MARVEL BLUE METALLIC 1
21 53212K86D00ZD COVER, L. HANDLE TOP *NHB63P* PEARL AMAZING WHITE 1
22 53212K86D00ZH COVER, L. HANDLE TOP *PB123PA* PEARL SIREN BLUE-A 1
23 53212K86D00ZE COVER, L. HANDLE TOP *NHA84P* PEARL NIGHTSTAR BLACK 1
24 86150KWS601 EMBLEM, PRODUCT(SJS) 1
25 90132MJED40 SCREW, PAN, 5X14 2
26 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
27 90344KTE910 NUT, CLIP, 4MM 2
28 90502KWP900 COLLAR B, HANDLE SETTING 1
29 90666K59A11 CLIP, SNAP FITTING(PO) 4
30 90677KANT00 NUT, CLIP, 5MM 2
31 938910501607 SCREW-WASHER, 5X16 1
32 9390334480 SCREW, TAPPING, 4X16 12
33 958011005508 BOLT, FLANGE, 10X55 1
