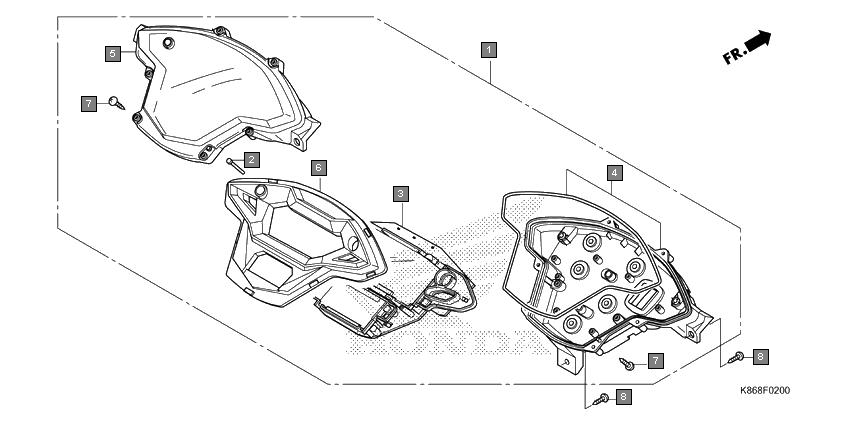

Scooters Grazia SCV125SK Frame Meter
Ref.No. Part No. Description Oty
1 37100K86D01 METER ASSY., COMBINATION (NIPPON SEIKI) 1
2 37113K86D01 KEY, TOP 1
3 37130K86D01 METER COMP., LCD(KPH) (NIPPON SEIKI) 1
4 37212K86D01 CASE ASSY., UNDER (NIPPON SEIKI) 1
5 37213K86D01 LENS ASSY.(NIPPON SEIKI) 1
6 37302K86D01 REFLECTOR ASSY.(NIPPON SEIKI) 1
7 9390322480 SCREW, TAPPING, 3X16 12
8 9390325380 SCREW, TAPPING, 5X16 3
