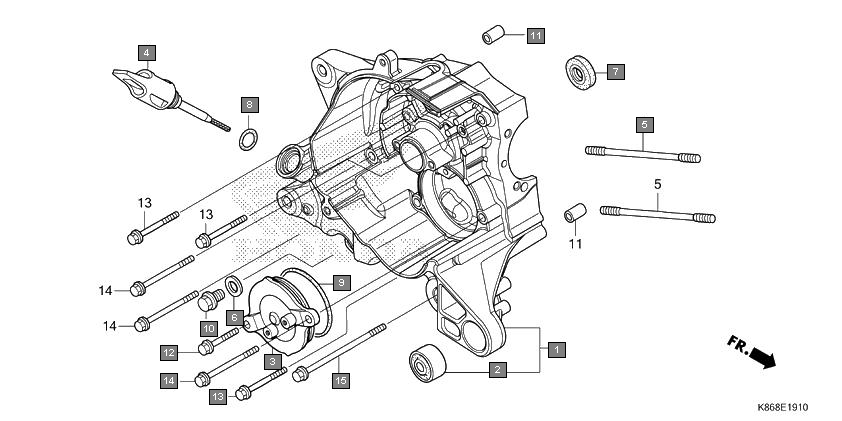

Scooters Grazia SCV125SK Engine Right crankcase
Ref.No. Part No. Description Oty
1 11100K24G00 CRANKCASE COMP., R. 1
2 11103K24G00 BUSH, ENGINE HANGER RUBBER 1
3 11361KVY900 COVER, OIL PUMP 1
4 15651K24G00 GAUGE, OIL LEVEL 1
5 90031K24900 BOLT A, STUD, 7X200 2
6 90401KWPF00 WASHER, DRAIN PLUG, 12MM 1
7 91201KWPD01 OIL SEAL, 16X26X7(ARAI) 1
8 91307035000 O-RING, 18X3 1
9 91307639000 O-RING, 64X2 1
10 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
11 9430108200 DOWEL PIN, 8X20 2
12 957010602200 BOLT, FLANGE, 6X22 1
13 957010605500 BOLT, FLANGE, 6X55 4
14 957010608000 BOLT, FLANGE, 6X80 3
15 957010611500 BOLT, FLANGE, 6X115 1
