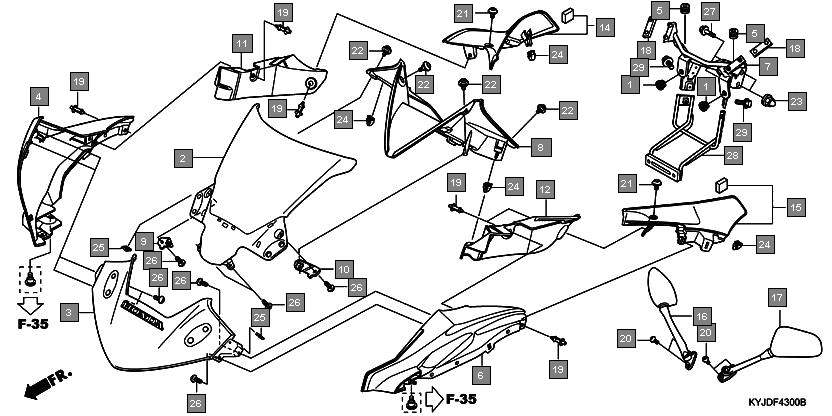

Motorcycles CBR250R CBR250RD Frame Upper cowl
Ref.No. Part No. Description Oty
1 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 2
2 64110KYJ900 WINDSCREEN 1
3 64200KYJT10ZA COWL SET, FR. UPPER(WL) *TYPE1* 1
4 64200KYJT00ZA COWL SET, FR. UPPER(WL) *TYPE2* 1
5 64200KYJT00ZB COWL SET, FR. UPPER(WL) *TYPE1* 1
6 64210KPPT00ZQ COWL, R. FR. SIDE *NHA66P* PEARL SUNBEAM WHITE 1
7 64210KPPT00ZB COWL, R. FR. SIDE *NH1* BLACK 1
8 64210KPPT00ZP COWL, R. FR. SIDE *R321* SPORTS RED 1
9 64216GJ2730 RUBBER, SCREEN SETTING 2
10 64220KPPT00ZR COWL, L. FR. SIDE *NHA66P* PEARL SUNBEAM WHITE 1
11 64220KPPT00ZB COWL, L. FR. SIDE *NH1* BLACK 1
12 64220KPPT00ZQ COWL, L. FR. SIDE *R321* SPORTS RED 1
13 64221KYJ710 STAY COMP., FR. COWL UPPER 1
14 64260KPPT00 COWL, FR. INNER 1
15 64261KPPT00 STAY, R. FR. INNER COWL 1
16 64262KPPT00 STAY, L. FR. INNER COWL 1
17 64270KPPT00 COWL, R. SIDE INNER 1
18 64280KPPT00 COWL, L. SIDE INNER 1
19 64500KYJT10 LID ASSY., R. TANK 1
20 64500KYJ710ZE LID ASSY., R. TANK *R321* SPORTS RED 1
21 64500KYJ710ZF LID ASSY., R. TANK *NH1* BLACK 1
22 64600KYJT10 LID ASSY., L. TANK 1
23 64600KYJ710ZE LID ASSY., L. TANK *R321* SPORTS RED 1
24 64600KYJ710ZF LID ASSY., L. TANK *NH1* BLACK 1
25 88110KYJH00 MIRROR ASSY., R. BACK 1
26 88120KYJH00 MIRROR ASSY., L. BACK 1
27 88201KPPT00 RUBBER, BACK MIRROR 2
28 90116KWT900 RIVET, PUSH, 7MM 6
29 90130KPPT00 BOLT, SOCKET, 6X13 4
30 90132KPPT00 SCREW, PAN, 6X10 2
31 90134KPPT00 SCREW, PAN, 5X14 4
32 90307KYJ710 NUT, CAP, 8MM 2
33 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 4
34 90677KANT00 NUT, CLIP, 5MM 2
35 9390324380 SCREW, TAPPING, 4X12 8
36 958010803200 BOLT, FLANGE, 8X32 2
37 958020803200 BOLT, FLANGE, 8X32 2
38 64225KYJ710 BRAKET COMP., FR. NUMBER PLATE 1
39 957010801200 BOLT, FLANGE, 8X12 2
40 957020801200 BOLT, FLANGE, 8X12 2
