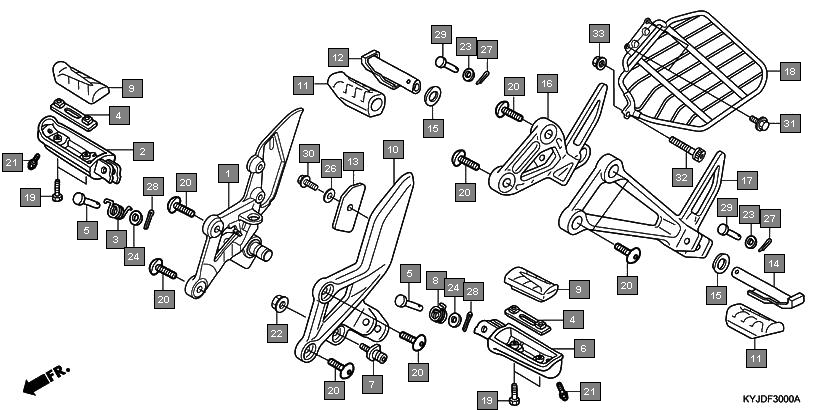

Motorcycles CBR250R CBR250RD Frame Step
Ref.No. Part No. Description Oty
1 50600KYJ710 HOLDER, R. STEP 1
2 50612MM5000 ARM, R. STEP 1
3 50617445840 SPRING, R. STEP RETURN 1
4 50619MM5000 PLATE, STEP SETTING 2
5 50639ML0010 PIN, STEP BAR 2
6 50642MM5000 ARM, L. STEP 1
7 50643KYJ900 PIVOT, CHANGE PEDAL 1
8 50644445840 SPRING, L. STEP RETURN 1
9 50661KYJ900 RUBBER, MAIN STEP 2
10 50700KYJ710 HOLDER, L. STEP 1
11 50710KYJ900 RUBBER, PILLION STEP 2
12 50711KET600 BAR, R. PILLION STEP 1
13 50711KYJ900 WEIGHT, STEP HOLDER 1
14 50712KET600 BAR, L. PILLION STEP 1
15 50714KBA930 PLATE, PILLION STEP SIDE 2
16 50715KYJ710 HOLDER, R. PILLION STEP 1
17 50725KYJ710 HOLDER, L. PILLION STEP 1
18 51103KYJ710 GUARD, SARI 1
19 90115MV9000 BOLT, MAIN STEP RUBBER SETTING 4
20 90127KYJ900 BOLT, SOCKET, 8X22 8
21 92501080080A BOLT, CAP, 8X8 2
22 9405008080 NUT, FLANGE, 8MM 1
23 9410106000 WASHER, PLAIN, 6MM 2
24 9410208000 WASHER, PLAIN, 8MM 2
25 9410306700 WASHER, PLAIN, 6MM 1
26 9420116150 PIN, SPLIT, 1.6X15 2
27 9420120150 PIN, SPLIT, 2.0X15 2
28 9501582000 PIN B, PILLION STEP 2
29 957010601007 BOLT, FLANGE, 6X10 1
30 957020601007 BOLT, FLANGE, 6X10 1
31 957010801407 BOLT, FLANGE, 8X14 2
32 957020801407 BOLT, FLANGE, 8X14 2
33 90127KYJ900 BOLT, SOCKET, 8X22 1
34 9405008070 NUT, FLANGE, 8MM 1
