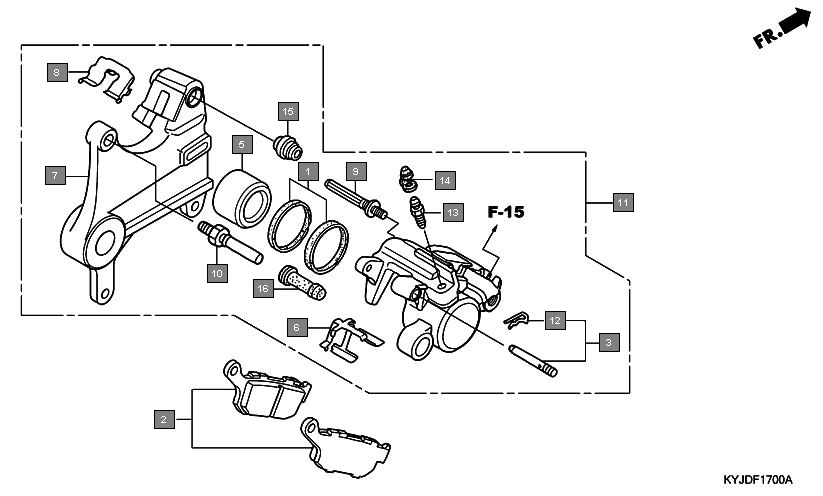

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06431MAK003 | SEAL SET, PISTON | 1 |
2 | 06435KYJ711 | PAD SET, RR. | 1 |
3 | 06436KYJ711 | PIN SET, HANGER | 1 |
4 | 43107KYJ711 | PISTON | 1 |
5 | 43108KYJ711 | SPRING, PAD | 1 |
6 | 43110KYJ711 | BRACKET, RR. | 1 |
7 | 43111KYJ711 | RETAINER | 1 |
8 | 43131KYJ711 | BOLT, PIN(MAIN) | 1 |
9 | 43132KYJ711 | BOLT, PIN(SUB) | 1 |
10 | 43150KYJ711 | CALIPER SUB ASSY., RR. | 1 |
11 | 43216KYJ711 | CLIP, HANGER PIN | 1 |
12 | 43352KYJ711 | SCREW, BLEEDER | 1 |
13 | 43353MAK003 | CAP, BLEEDER | 1 |
14 | 43133KYJ711 | BOOT, SLIDE(MAIN) | 1 |
15 | 43134KYJ711 | BOOT, SLIDE(SUB) | 1 |
