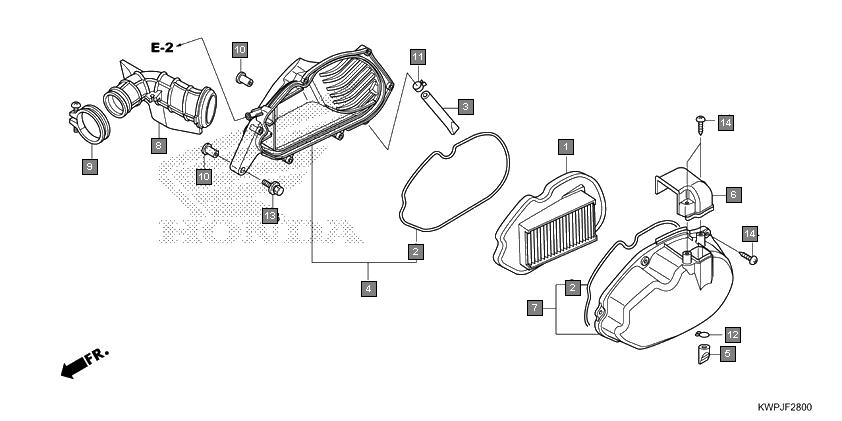

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17210KVTD00 | ELEMENT, AIR CLEANER | 1 |
| 2 | 17212GEE000 | SEAL, AIR CLEANER COVER | 2 |
| 3 | 17216KVTG00 | TUBE, DRAIN | 1 |
| 4 | 17225KVTG00 | CASE SUB ASSY., AIR CLEANER | 1 |
| 5 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 1 |
| 6 | 17234KWPG30 | COVER, AIR CLEANER DUCT | 1 |
| 7 | 17235KWPG30 | COVER SUB ASSY., AIR CLEANER | 1 |
| 8 | 17253KVTG00 | TUBE, AIR CLEANER CONNECTING | 1 |
| 9 | 17254K74N00 | BAND, AIR CLEANER CONNECTING TUBE(40) | 1 |
| 10 | 50731KV3770 | COLLAR, PILLION STEP SETTING | 2 |
| 11 | 90602KPL900 | CLAMP, TUBE(D12.0) | 1 |
| 12 | 90653KWPF00 | CLIP, TUBE(B12.5) | 1 |
| 13 | 934040604007 | BOLT-WASHER, 6X40 | 2 |
| 14 | 9390325480 | SCREW, TAPPING, 5X20 | 8 |
