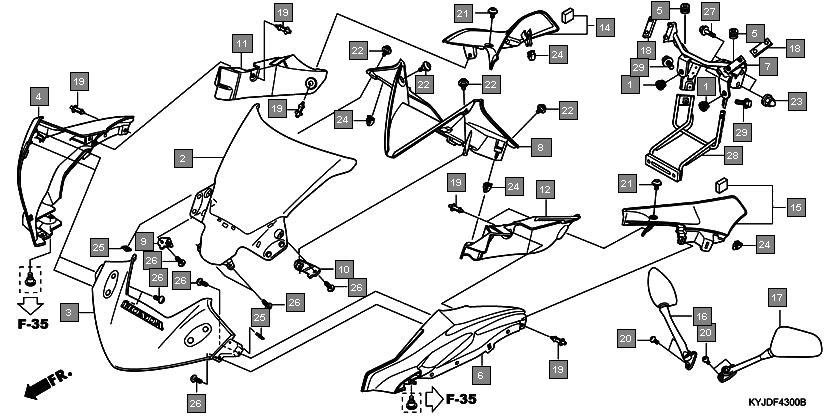

Motorcycles CBR250R CBR250RAC Frame Upper cowl
Ref.No. Part No. Description Oty
1 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 2
2 64110KYJ900 WINDSCREEN 1
3 64200KYJ610ZB COWL SET, FR. UPPER(WL) *TYPE2* 1
4 64200KYJ610ZC COWL SET, FR. UPPER(WL) *TYPE1* 1
5 64200KYJH10ZA COWL SET, FR. UPPER(WL) *TYPE1* 1
6 64210KPPT00ZH COWL, R. FR. SIDE *NH411M* FORCE SILVER METALLIC 1
7 64210KPPT00ZL COWL, R. FR. SIDE *PB332P* PEARL HERON BLUE 1
8 64216GJ2730 RUBBER, SCREEN SETTING 2
9 64220KPPT00ZH COWL, L. FR. SIDE *NH411M* FORCE SILVER METALLIC 1
10 64220KPPT00ZM COWL, L. FR. SIDE *PB332P* PEARL HERON BLUE 1
11 64221KYJ710 STAY COMP., FR. COWL UPPER 1
12 64260KPPT00 COWL, FR. INNER 1
13 64261KPPT00 STAY, R. FR. INNER COWL 1
14 64262KPPT00 STAY, L. FR. INNER COWL 1
15 64270KPPT00 COWL, R. SIDE INNER 1
16 64280KPPT00 COWL, L. SIDE INNER 1
17 64500KYJ710ZA LID ASSY., R. TANK *R4C* CANDY RUBY RED 1
18 64500KYJ710ZC LID ASSY., R. TANK *NHA35M* ASTEROID BLACK METALLIC 1
19 64500KYJ710ZD LID ASSY., R. TANK *NH303M* MAT AXIS GRAY METALLIC 1
20 64600KYJ710ZA LID ASSY., L. TANK *R4C* CANDY RUBY RED 1
21 64600KYJ710ZC LID ASSY., L. TANK *NHA35M* ASTEROID BLACK METALLIC 1
22 64600KYJ710ZD LID ASSY., L. TANK *NH303M* MAT AXIS GRAY METALLIC 1
23 88110KYJH00 MIRROR ASSY., R. BACK 1
24 88120KYJH00 MIRROR ASSY., L. BACK 1
25 88201KPPT00 RUBBER, BACK MIRROR 2
26 90116KWT900 RIVET, PUSH, 7MM 6
27 90130KPPT00 BOLT, SOCKET, 6X13 4
28 90132KPPT00 SCREW, PAN, 6X10 2
29 90134KPPT00 SCREW, PAN, 5X14 4
30 90307KYJ710 NUT, CAP, 8MM 2
31 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 4
32 90677KANT00 NUT, CLIP, 5MM 2
33 9390324380 SCREW, TAPPING, 4X12 8
34 958010803200 BOLT, FLANGE, 8X32 2
35 958020803200 BOLT, FLANGE, 8X32 2
36 64225KYJ710 BRAKET COMP., FR. NUMBER PLATE 1
37 957010801200 BOLT, FLANGE, 8X12 2
38 957020801200 BOLT, FLANGE, 8X12 2
