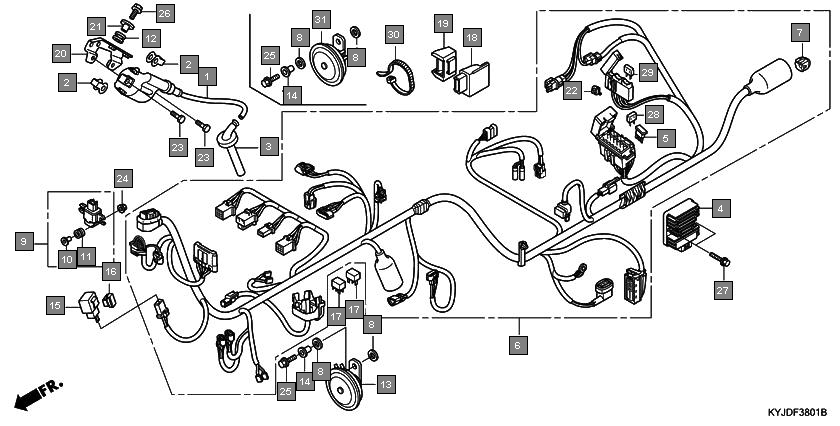

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30510KYJ901 | COIL COMP., IGNITION | 1 |
2 | 30520GFM900 | SPACER, IGNITION COIL | 2 |
3 | 30700KY2702 | CAP ASSY., NOISE SUPPRESSOR | 1 |
4 | 31600KVK901 | RECTIFIER ASSY., REGULATOR | 1 |
5 | 31730MAS601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 |
6 | 32100KYJ610 | HARNESS, WIRE | 1 |
7 | 32606GEV761 | CAP, DUMMY(4P)(RED) | 1 |
8 | 33714KL3620 | RUBBER, TAILLIGHT BRACKET | 2 |
9 | 35160KPPT01 | SENSOR ASSY., BANK ANGLE | 1 |
10 | 35162MGC003 | COLLAR | 2 |
11 | 35163MGC003 | GROMMET | 2 |
12 | 36043657000 | GROMMET, WIRE HARNESS | 2 |
13 | 38110KYJ611 | HORN COMP. | 1 |
14 | 38117KFE701 | COLLAR, HORN SETTING | 1 |
15 | 38301KTF671 | RELAY COMP., WINKER | 1 |
16 | 38306GE7000 | SUSPENSION, WINKER RELAY | 1 |
17 | 38501KWN901 | RELAY COMP., POWER (MICRO ISO 4P)(OMRON) | 2 |
18 | 38501KVZ631 | RELAY ASSY., POWER (MICRO ISO 4P)(MITSUBA) | 2 |
19 | 38770KYJ711 | PGM-FI UNIT | 1 |
20 | 38771GFM900 | SUSPENSION, ENGINE CONTROL UNIT | 1 |
21 | 50204KYJ900 | STAY COMP., IGNITION COIL | 1 |
22 | 50214KYJ900 | COLLAR, IGNITION COIL MOUNTING | 2 |
23 | 91556SP0003 | CLIP, COUPLER(BROWN) | 1 |
24 | 92101060204J | BOLT, HEX., 6X20 | 2 |
25 | 9405006080 | NUT, FLANGE, 6MM | 2 |
26 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
27 | 957020601600 | BOLT, FLANGE, 6X16 | 2 |
28 | 957010601608 | BOLT, FLANGE, 6X16 | 2 |
29 | 957020601608 | BOLT, FLANGE, 6X16 | 2 |
30 | 957010602000 | BOLT, FLANGE, 6X20 | 2 |
31 | 957020602000 | BOLT, FLANGE, 6X20 | 2 |
32 | 9820041000 | FUSE, MINI(10A) | 8 |
33 | 9820043000 | FUSE, MINI(30A) | 3 |
34 | 90651KYJ611 | BAND, WIRE | 1 |
