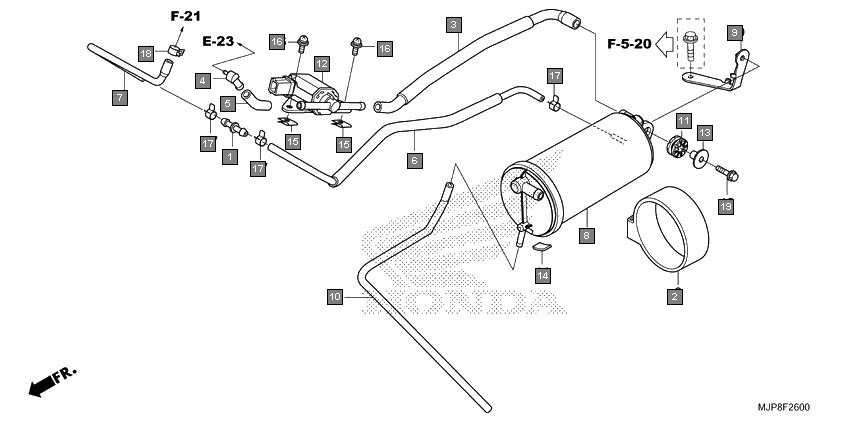

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16958GJ6000 | JOINT, FUEL TUBE | 1 |
| 2 | 17411MGZA00 | RUBBER, CANISTER MOUNT | 1 |
| 3 | 17414MJPA60 | TUBE(PCSV-CANISTER) | 1 |
| 4 | 17415KZZ900 | JOINT, TUBE | 1 |
| 5 | 17415MJPA60 | TUBE, PURGE CONTROL SOLENOID JOINT | 1 |
| 6 | 17418MJPDA0 | TUBE, CANISTER | 1 |
| 7 | 17419MJPDA0 | TUBE, FUEL TANK JOINT | 1 |
| 8 | 17421MJPA60 | CANISTER COMP. | 1 |
| 9 | 17422MJPA60 | STAY COMP., CANISTER | 1 |
| 10 | 17423MJPA60 | TUBE, CANISTER DRAIN | 1 |
| 11 | 33115KVK900 | RUBBER, HEADLIGHT | 1 |
| 12 | 36162KZL931 | VALVE, PURGE CONTROL SOLENOID | 1 |
| 13 | 61104428000 | COLLAR, FR. FENDER | 1 |
| 14 | 80102MJSJ70 | RUBBER, RR. FENDER | 1 |
| 15 | 90677KAN961 | NUT, CLIP, 5MM | 2 |
| 16 | 938920501008 | SCREW-WASHER, 5X10 | 2 |
| 17 | 950024080008 | CLAMP, TUBE(D8) | 3 |
| 18 | 950024100008 | CLAMP, TUBE(D10) | 1 |
| 19 | 957010602208 | BOLT, FLANGE, 6X22 | 1 |
