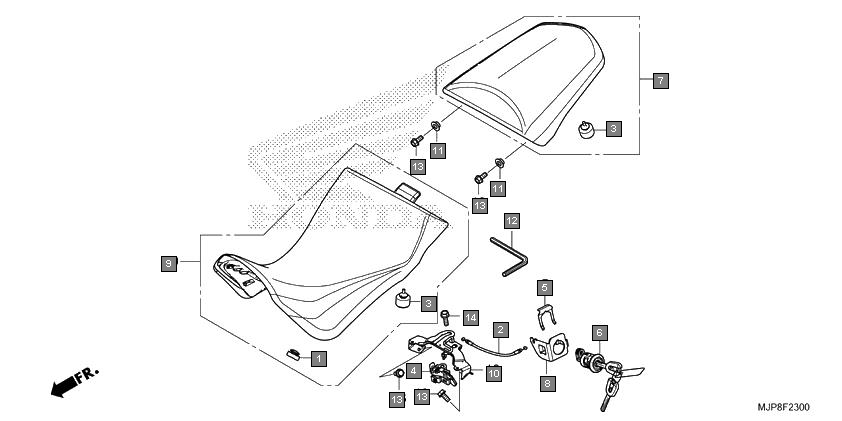

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 77110KA3730 | RUBBER, SEAT MOUNTING | 1 |
2 | 77156MJPG51 | CABLE, SEAT LOCK | 1 |
3 | 77206GF0000 | RUBBER, SEAT CUSHION | 10 |
4 | 77220MJFA01 | HOOK, SEAT CATCH | 1 |
5 | 77235MJED00 | PLATE, LOCK KEY SETTING | 1 |
6 | 77239MJMD62 | KEY, SEAT LOCK(WAVE) | 1 |
7 | 77300MJPDA0ZA | SEAT COMP., PILLION *TYPE3* | 1 |
8 | 77321MJPG50 | STAY, SEAT LOCK CABLE | 1 |
9 | 77500MJPF50ZB | SEAT COMP., MAIN(LOW) *TYPE3* | 1 |
10 | 77582MJPG50 | STAY COMP., SEAT CATCH | 1 |
11 | 80118MFJD00 | COLLAR, FENDER | 2 |
12 | 89221MGZJ00 | WRENCH, HEX., 5MM | 1 |
13 | 957010601404 | BOLT, FLANGE, 6X14 | 4 |
14 | 957010602004 | BOLT, FLANGE, 6X20 | 1 |
