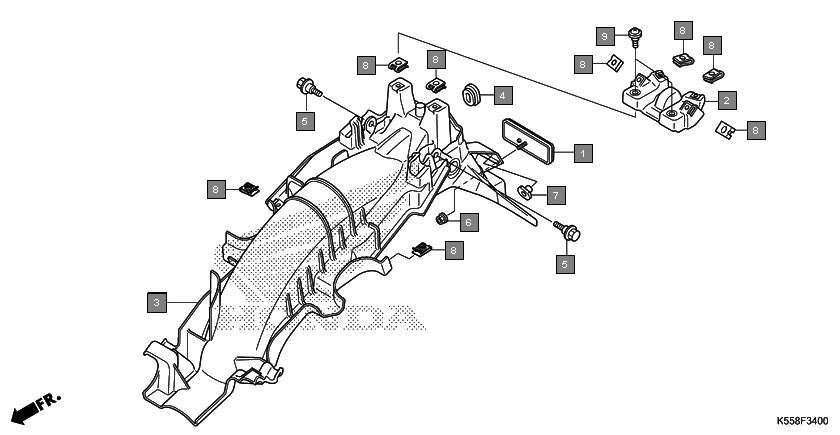

Motorcycles Livo CBF110H Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 80101K55600 STAY, TAILLIGHT 1
3 80110K55900ZA FENDER SET, RR(WL)*TYPE1* 1
4 80110K55600ZA FENDER SET, RR.(WL) *TYPE1* 1
5 83551KWS900 GROMMET, TAILLIGHT 1
6 90111162000 BOLT, FLANGE, 6MM 2
7 90301KWN901 NUT, U, 5MM 1
8 90311KTE910 NUT, RR. FENDER 2
9 90320GC3000 NUT, SPRING, 5MM 8
10 91509GE2760 SCREW, PAN, 5X11.5 2
