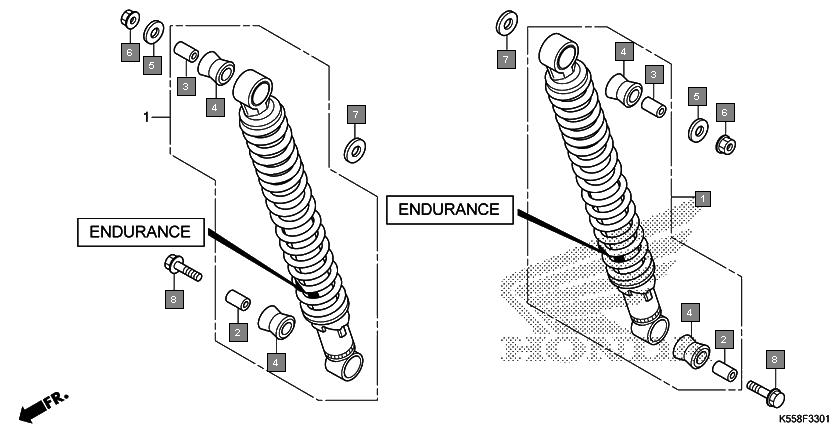

Motorcycles Livo CBF110H Frame Rear cushion(endurance)
Ref.No. Part No. Description Oty
1 52400K55901 CUSHION ASSY, RR(ENDURANCE) 1
2 52400K14673 CUSHION ASSY., RR.(ENDURANCE) 2
3 52485K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
4 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 2
5 52495K23902 BUSH, RUBBER(ENDURANCE) 4
6 90551KTE910 WASHER, SPECIAL, 10MM 2
7 9405010000 NUT, FLANGE, 10MM 2
8 9410112000 WASHER, PLAIN, 12MM 2
9 958011003500 BOLT, FLANGE, 10X35 2
10 958021003500 BOLT, FLANGE, 10X35 2
