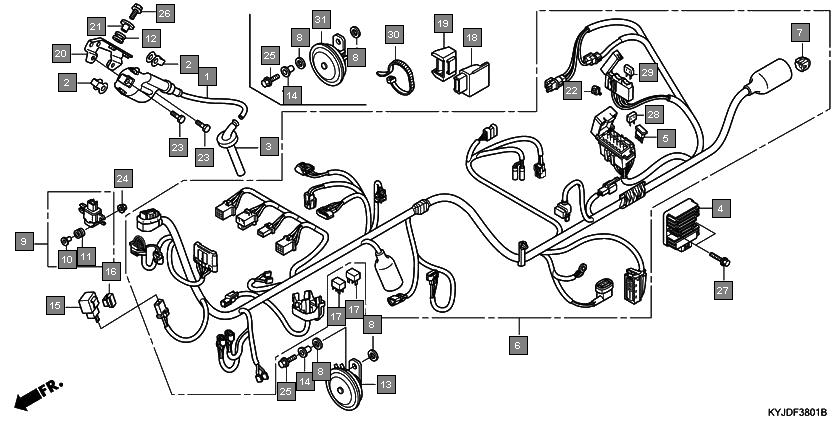

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 30510KYJ901 | COIL COMP., IGNITION | 1 |
| 2 | 30520GFM900 | SPACER, IGNITION COIL | 2 |
| 3 | 30700KY2702 | CAP ASSY., NOISE SUPPRESSOR | 1 |
| 4 | 31600KVK901 | RECTIFIER ASSY., REGULATOR | 1 |
| 5 | 31730MAS601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 |
| 6 | 32606GEV761 | CAP, DUMMY(4P)(RED) | 1 |
| 7 | 33714KL3620 | RUBBER, TAILLIGHT BRACKET | 2 |
| 8 | 35160KPPT01 | SENSOR ASSY., BANK ANGLE | 1 |
| 9 | 35162MGC003 | COLLAR | 2 |
| 10 | 35163MGC003 | GROMMET | 2 |
| 11 | 36043657000 | GROMMET, WIRE HARNESS | 2 |
| 12 | 38110KYJT01 | HORN COMP.(HIGH) | 1 |
| 13 | 38117KYJT00 | COLLAR, HORN SETTING | 2 |
| 14 | 38301KTF671 | RELAY COMP., WINKER | 1 |
| 15 | 38306GE7000 | SUSPENSION, WINKER RELAY | 1 |
| 16 | 38501KWN901 | RELAY COMP., POWER (MICRO ISO 4P)(OMRON) | 2 |
| 17 | 38770KYJT01 | PGM-FI UNIT | 1 |
| 18 | 38771GFM900 | SUSPENSION, ENGINE CONTROL UNIT | 1 |
| 19 | 50204KYJ900 | STAY COMP., IGNITION COIL | 1 |
| 20 | 50214KYJ900 | COLLAR, IGNITION COIL MOUNTING | 2 |
| 21 | 91556SP0003 | CLIP, COUPLER(BROWN) | 1 |
| 22 | 92101060204J | BOLT, HEX., 6X20 | 2 |
| 23 | 9405006080 | NUT, FLANGE, 6MM | 2 |
| 24 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
| 25 | 957010601608 | BOLT, FLANGE, 6X16 | 2 |
| 26 | 957010602000 | BOLT, FLANGE, 6X20 | 2 |
| 27 | 9820041000 | FUSE, MINI(10A) | 8 |
| 28 | 9820043000 | FUSE, MINI(30A) | 3 |
| 29 | 90651KYJ611 | BAND, WIRE | 1 |
| 30 | 38120KYJT01 | HORN COMP.(LOW) | 1 |
| 31 | 32100KYJH80 | HARNESS, WIRE | 1 |
